AIRSTIM

AIRSTIM

Tests Avoidance learning by motivating an animal’s normal sensory pathways

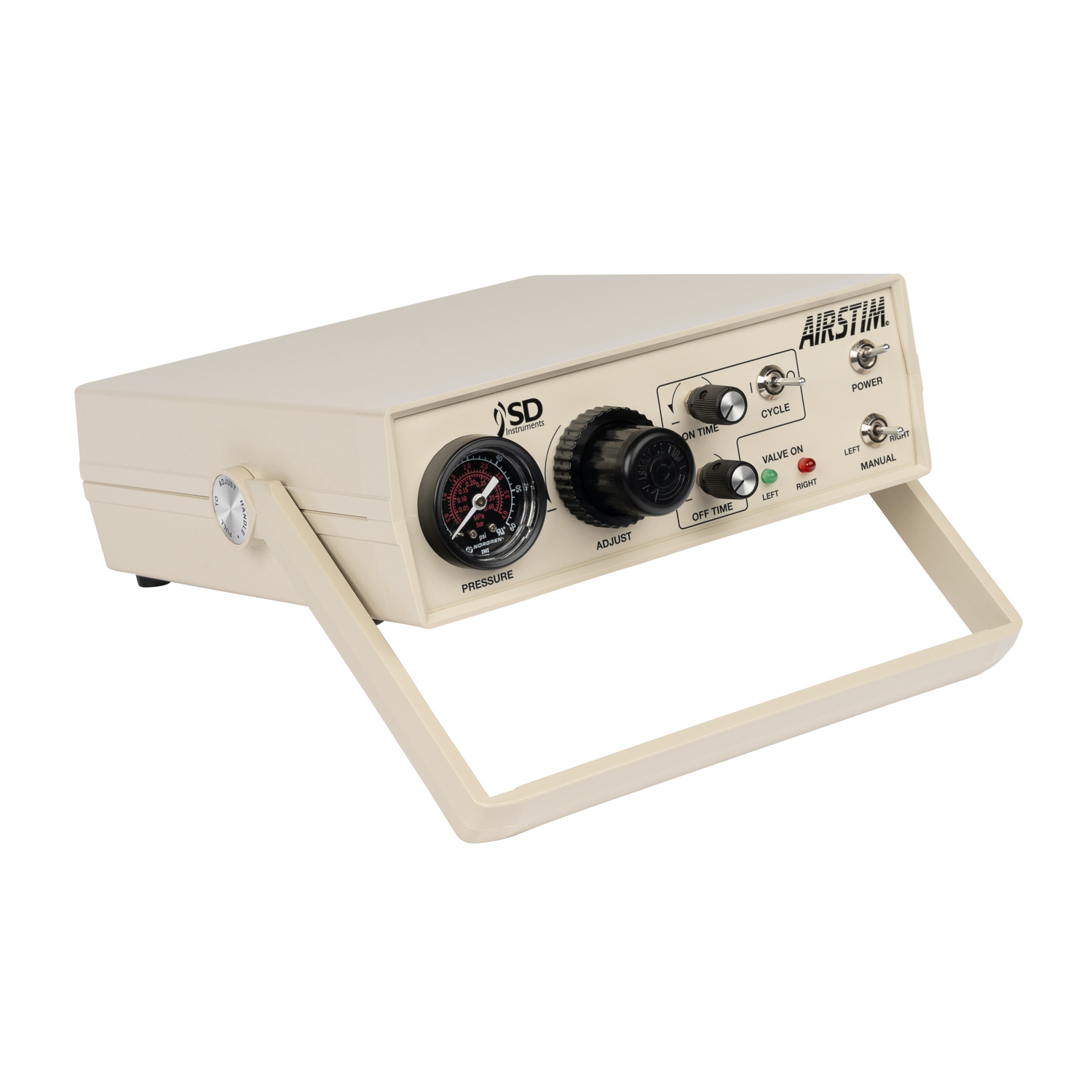

The AIRSTIM system is an alternative unconditioned stimulus to shock.  AIRSTIM provides air puff stimulation as an aversive stimulus motivating the animal through normal sensory pathways.  Stimulation is delivered as a series of air puffs by adjusting the timing controls to set the duration of each puff and inter-puff interval.

Download data sheet
  • Air Puff stimulation is a kinder and gentler method of motivation
  • Motivate animals via normal sensory pathways
  • Adjustable timing controls to set puff and inter-puff intervals
  • System operates up to 60 psi

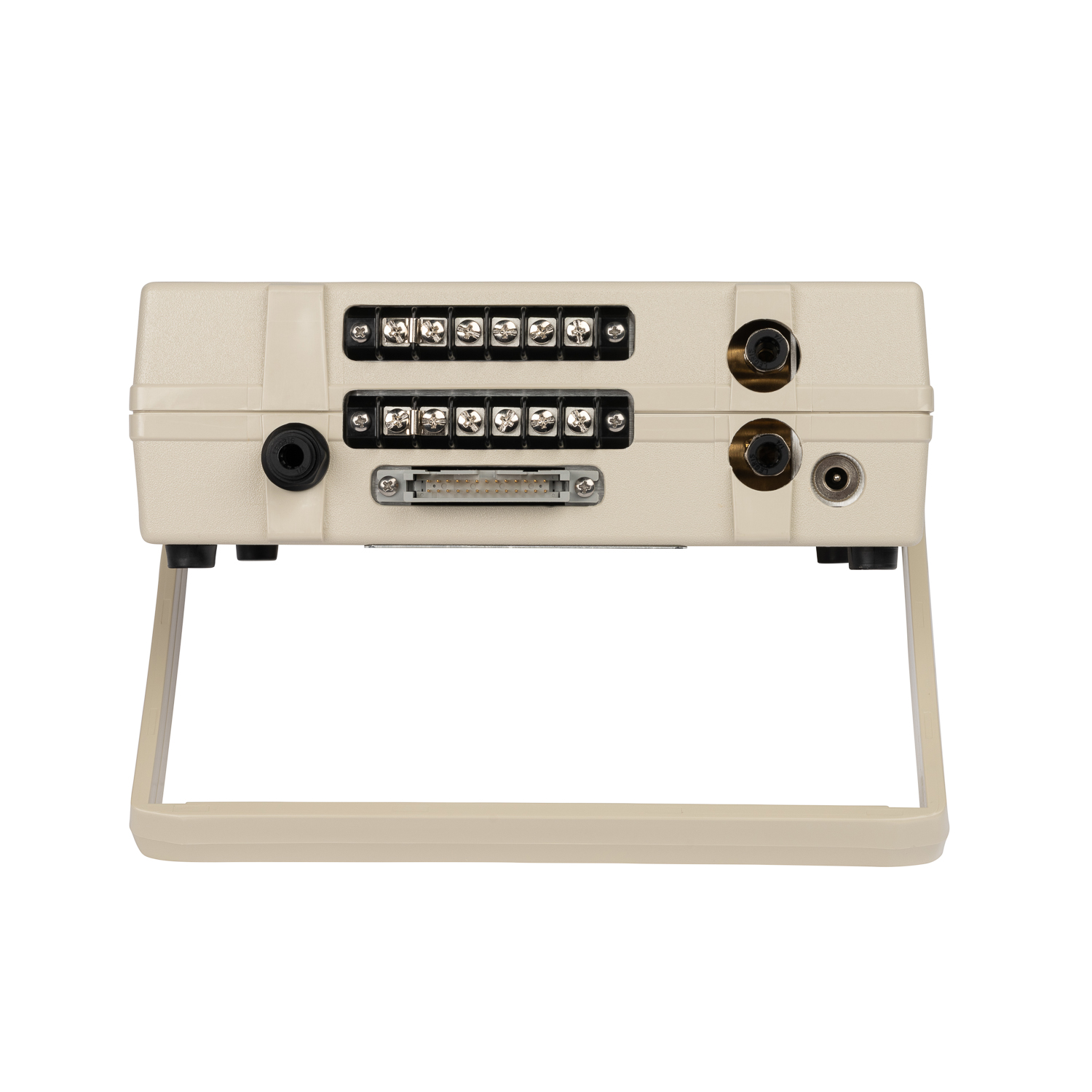

The air stream is initiated in the AIRSTIM unit by a switch closure, TTL/CMOS, open collector or a +/- 2.5 to 40 VDC signals to the control chassis.  The air stream can be delivered as a series of puffs by adjusting the timing controls to set the duration of each puff and the inter-puff interval.

The system offers a regulator that is used for fine adjustment below 60 psi, however you will need to supply the air source with a regulator to reduce incoming pressure to 60 psi or lower.

Dimensions

9” (W) x 12” (D) x 3” (H)

Maximum Pressure

60 PSI

Material Composition

Hair Cell ABS

Maximum # Stations

2 – Right and Left

Standard Cable Length

8 ft.

You are required to supply your own air tank.
