Tremor Monitor

Tremor Monitor

Execute tremor studies in rats and mice with accuracy and review your data in raw or report format with intuitive, menu-based software.

The SDI tremor monitor system allows you to record, review, analyze and report tremor studies in rats and mice. Using an ultra-sensitive movement sensor, Tremor Monitor differentiates tremor events from ambulatory/stereotyped movements, allows user defined short and long tremors, and will record continuous movement waveforms at 128Hz for over 68 minutes.

Run up to eight test stations from one computer, and then use the point-and-click software to display your test results in graphical and/or numerical formats.  Tremor Monitor also offers comprehensive reporting, including FFT Power Spectrum, Filtered Increments, and Percent Energy.

Download data sheet
  • FFT reporting of tremor frequencies
  • Records continuous movement waveform at 128Hz for 68 minutes
  • Long and short tremor events (user defined)
  • Data can be exported into time bins ranging from 1-152 seconds
  • Two TTL output channels
  • Complete movement record can be reviewed in adjustable intervals
  • Easy to use, intuitive, menu-based software
  • Easily run up to four test stations from a single computer

The SDI tremor monitor system allows you to record, review, analyze and report tremor studies in rats and mice. Using an ultra-sensitive movement sensor, Tremor Monitor differentiates tremor events from ambulatory/stereotyped movements and will record continuous movement waveforms at 128Hz for over 68 minutes. The user is able to define long and short tremor events and review the results in adjustable interval lengths.  All resutls from all subjects in a study are stored in a single database file in table format.

Run up to eight test stations from one computer, and then use the point-and-click software to display your test results in graphical and/or numerical formats. The Tremor Monitor provides with ease the ability to export data into time bins ranging from 1-512 seconds.  The Tremor Monitor also offers comprehensive reporting, including FFT Power Spectrum, Filtered Increments, and Percent Energy.  When Start Time (sec) is -1 the full waveform of the tremor response is shown in the lower signal graph display.  The waveform is automatically scaled to the peak voltage recorded for the specified segment.

Tremor Monitor System Components Include:

  • Test cabinet in composite (ABS)

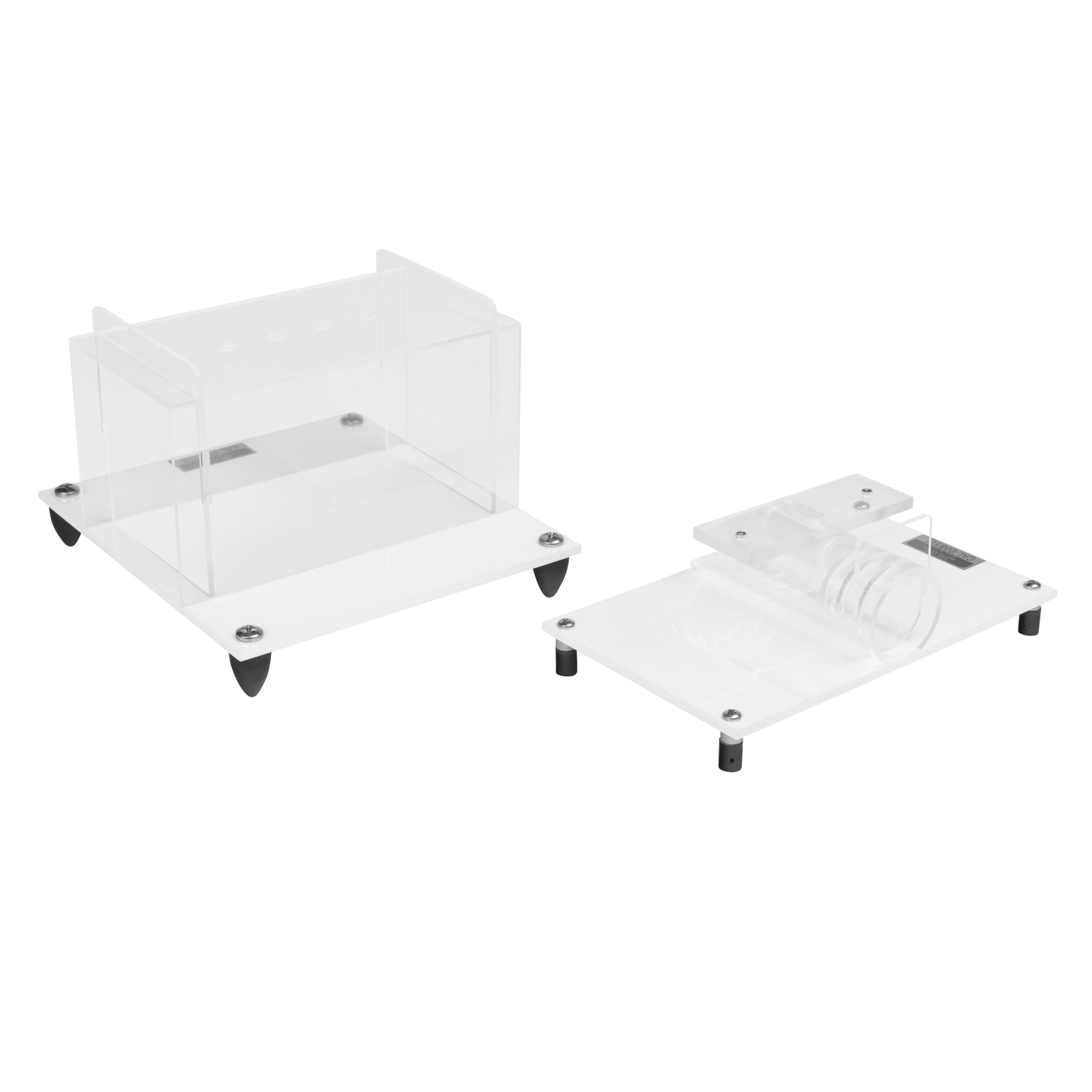

  • Animal Enclosure (mice and rats specific enclosure)
  • Power Supply
  • Cables & Connectors
  • Tremor Monitor Software Runs only on Windows 10
  • Tremor Sensor
  • Software Utilities for Data Analysis

Dimensions

ABS Isolation Cabinet – 15” (W) x 14” (D) x 18” (H)
Control Box – 10.25” (W) x 10.25” (D) x 4 3/8” (H)

Weight

24 lbs. (Isolation Cabinet), 3 lbs. (Control Box)

Material Composition

Isolation Cabinet: ABS plastic, Control Box: Plastic, Animal Enclosure: Acrylic

Maximum # of Stations:

8 per computer

Must run on Windows 10

Certifications

CE
